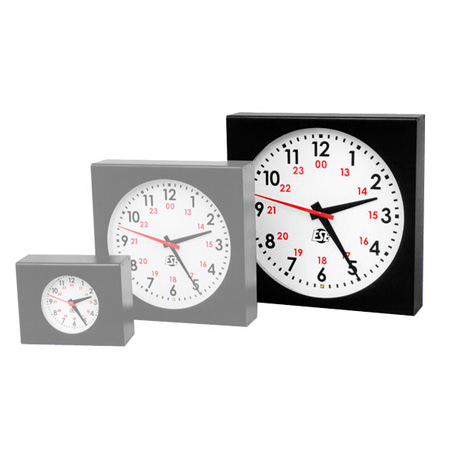

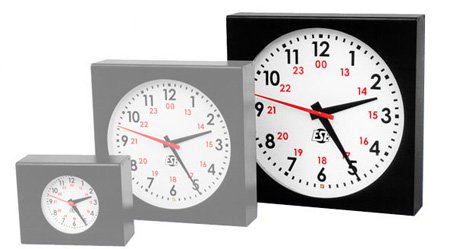

The <strong>LX-5116U</strong> is a Wall Mount Analog Clock with a 16" viewing diameter. The LX-5116U is designed to operate as a Time Code Reader, Stand-Alone Clock or Impulse Clock. It can read, decode and display time information from most any Master Clock or other source of time code. A rear-mounted DIP switch permits the clock to display time as received from a source of SMPTE/EBU, ASCII or ESE Time Code (the Impulse Clock mode may be replaced with an IRIG-B input mode as a factory option). After a very simple "set-up" procedure and receipt of time code, the unit automatically sets itself to the exact time and continuously slaves to the time code (If time code is lost, an error indicator is lit and the clock continues counting while referencing an internal crystal time base).</p><p>Other user defined modes of operation allow the LX-5116U to be synchronized to a Master Clock with a 1 PPS alternating 12 or 24 VDC "Favag" type output or to be set to real time and allowed to run based on its internal crystal oscillator. The second hand is completely silent and can be programmed for "Sweep" mode or "Step" mode. The initial set-up allows the unit to have its hours (and/or minutes) offset to that of another time zone. Also, since the clock can continuously track time code, there is no need to twice annually compensate for daylight saving time (assuming the Master Clock automatically adjusts itself accordingly).</p>

The LX5116U is a Wall Mount Analog Clock with a 16 viewing diameter The LX5116U is designed to operate as a Time Code Reader StandAlone Clock or Impulse Clock It can read decode and display time information from most any Master Clock or other source of time code A rearmounted DIP switch permits the clock to display time as received from a source of SMPTEEBU ASCII or ESE Time Code the Impulse Clock mode may be replaced with an IRIGB input mode as a factory option After a very simplesetup procedure and receipt of time code the unit automatically sets itself to the exact time and continuously slaves to the time code Other user defined modes of operation allow the LX5116U to be synchronized to a Master Clock with a 1 PPS alternating 12 or 24 VDCFavag type output or to be set to real time and allowed to run based on its internal crystal oscillator The second hand is completely silent and can be programmed forSweep mode orStep mode The initial setup allows the unit to have its hours andor minutes offset to that of another time zone Also since the clock can continuously track time code there is no need to twice annually compensate for daylight saving time Features. Silent Operation. Simple Setup SelfSetting with Time Code Input. Reads ESE ASCII SMPTE or EBU Time Code IRIGB optional. StandAlone Impulse Reader Modes. Sweep or Step Second Hand. 16 Dial Viewing Distance of 80. Battery Backup of Hand Positions. Time Zone Offset. Time Code Loss Indicator. Optional lighted dial with variable brightness control. Rackmount 220240 VAC 110120 VAC is standard UL OptionsSpecifications. Size 16. Power 5 Watts Maximum. Electrical 117 VAC 5060 Hz. Mechanical Wall Mount. Dimension 1745 x 1745 x 345 Deep. ASCII 120k unbalanced. Impulse Alternating 12 VDC. Battery 9v Maintains CPU for up to 60 Hours. Viewing Distance 80 ft. Weight 10 lbs
